Batch mixers
Batch mixers is developed and manufactured by us based on world-class advanced technology, every specification is the most leading, the quality strictly comply with GMP requirements and ISO9001. Especially apply to food, beverage, chemical, petrochemical, pigment, dyestuff, paint and pharmacy industry, the structure is compact, simple operation, lower noise and stable running, its most important advantage is there is no grinding medium during whole process. And its function includes high shear, dispersing, homogenizing, mixing and transferring.Working Principle
HIJ(vertical) Batch mixers make one or more phases into one continuous phase. And normally every phase is not melted with others, but the high tangent speed and high frequency mechanical effect of rotor make the solid phase, liquid phase and gaseous phase equally homogenized in very short time with corresponding technology and additives, finally get the stable and high quality products.

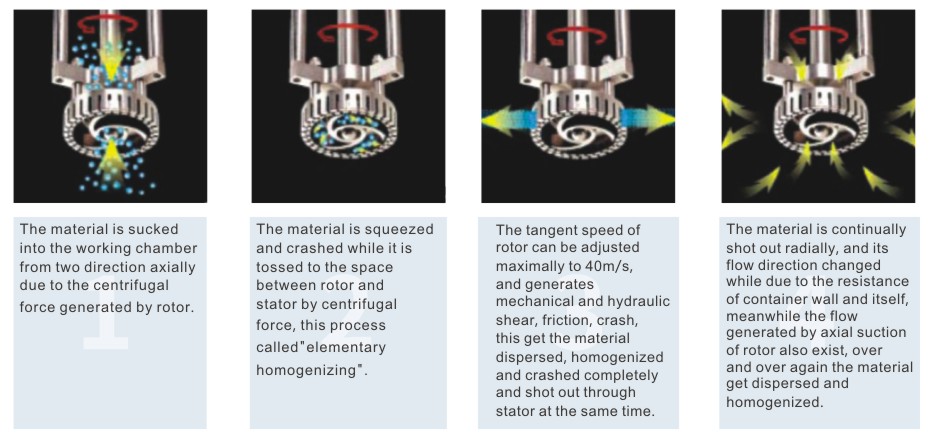

Working Process

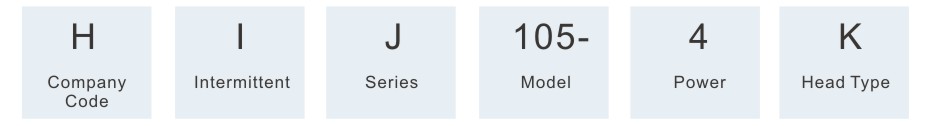

Model Composition
Note: (series: J=simple connection, T=elastic connection, M=sealed typehead type: k1=single direction suction, k2=double direction suction)

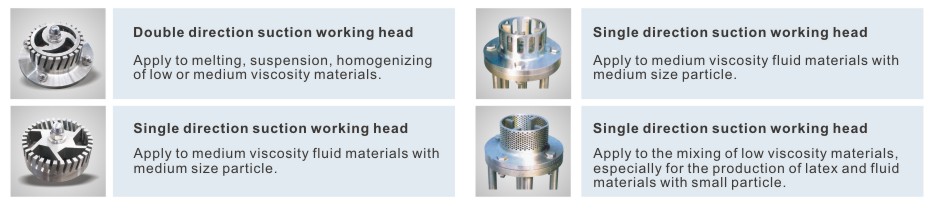

Optional Working Head
Different working head available to fulfill dispersing, homogenizing, grinding for different materials.

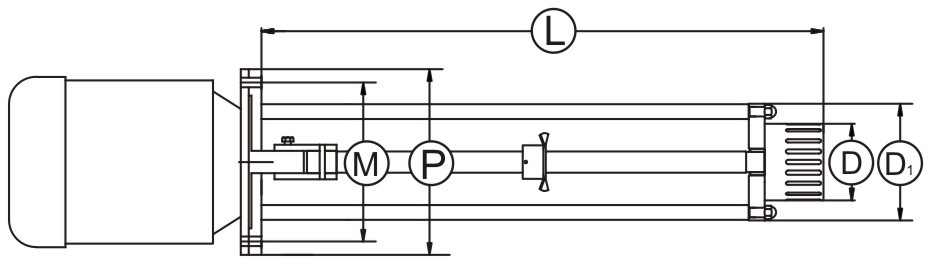

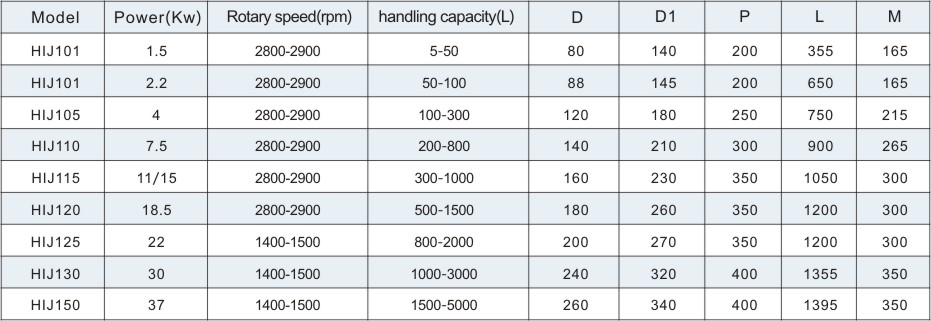

Specification

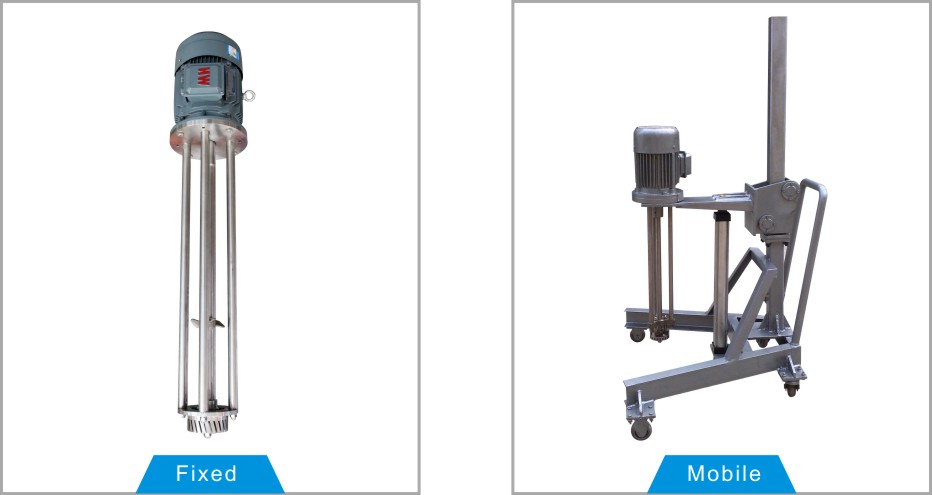

Installation
Applications
Food industry: chilli sauce, icecream, butter, juice, peanut milk, soymilk, soybean sauce, maltose, spices and beverage.
Chemical industry: paint, pigment, coating, lubricant, diesel, pitch, detergent, plastics, resin, leather, etc.
Daily chemical industry: toothpaste, detergent, lipstick, facial cleanser, shampoo, shoe polish, bath cream, soap, etc.
Medical industry: syrup, chinese patent medicine, bee milk, vaccine, oral liquid, antibiotics, injection, etc.
Construction industry: wall coating, waterproof coating, colorful coating, ceramic glaze, nano-coating, etc.
Paper industry: pulp, adhesive, rosin emulsion, etc.
Pesticide industry: bactericide, herbicide, fertilizer, biopesticide, etc.
Others: textile industry, coal industry, military industry

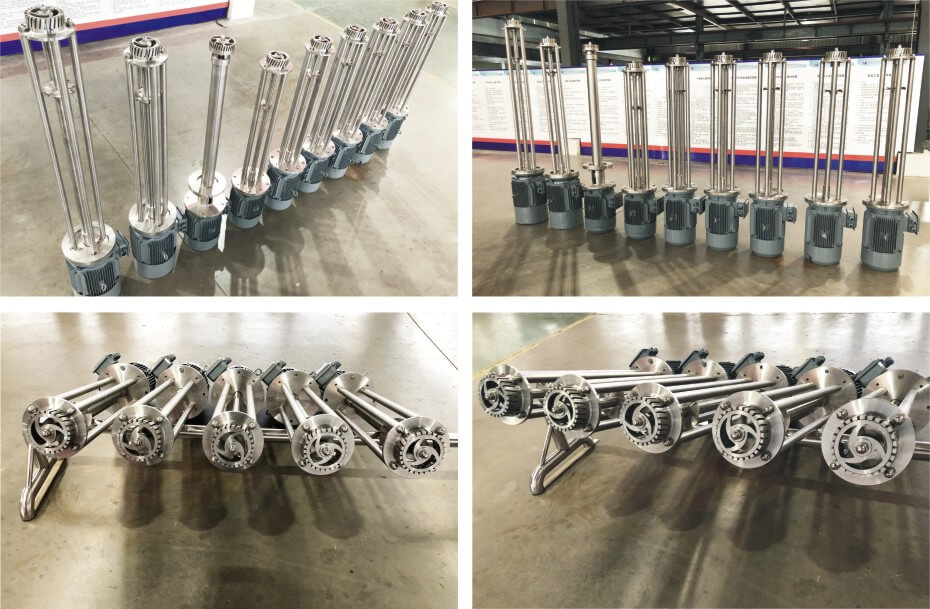

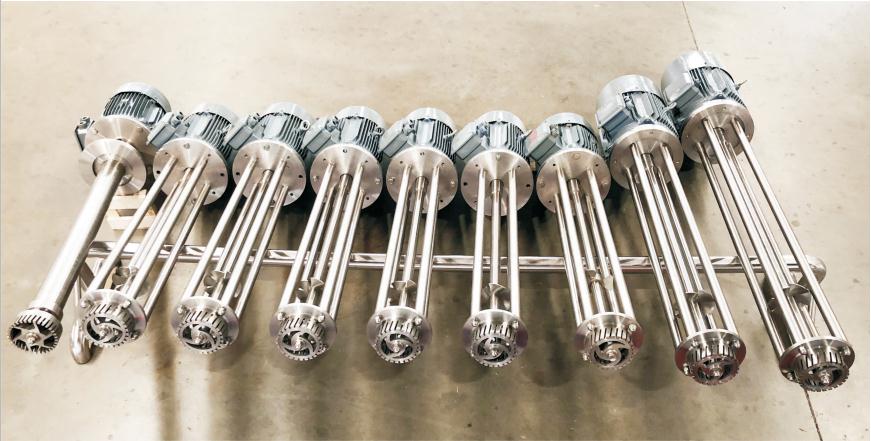

Pictures
