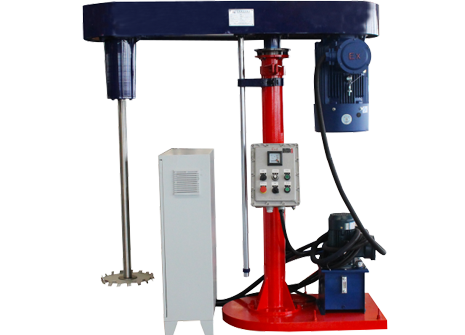

Disperser series

1.Disperser adopts stepless speed meeting various process requirements.
2.It is laminar condition below the dispersing disc when the equipment is working resulting in material dispersing. The high shear disperser is equipped with hydraulic lifting device , capable to rotate with 360 degree.
3.When the disperser is working, turbulent flow would be formed generating high shear and impact power to materials.

Working Process

A、Powerful centrifugal force push the material into the gap of stator and rotor. Meanwhile, the materials are squeezed by centrifugal power, fricted by liquid layers and impacted by liquid power, resulting in initial dispersing.

B、Rotors produce 15m/s line speed when the disperser is working, materials are thown out from the rotors at the meantime of liquid power’s shear, liquid layer’s friction, etc.

C、Process repeats several times and finally complete the dispersing process by several times’ dispersing.

Model Composition


(Remark: Product classification:J for simple type, M for kettle application)

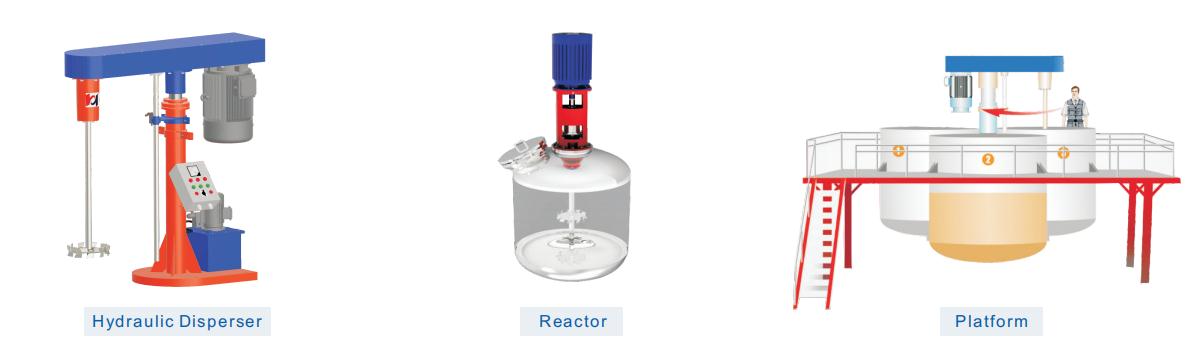

Installation

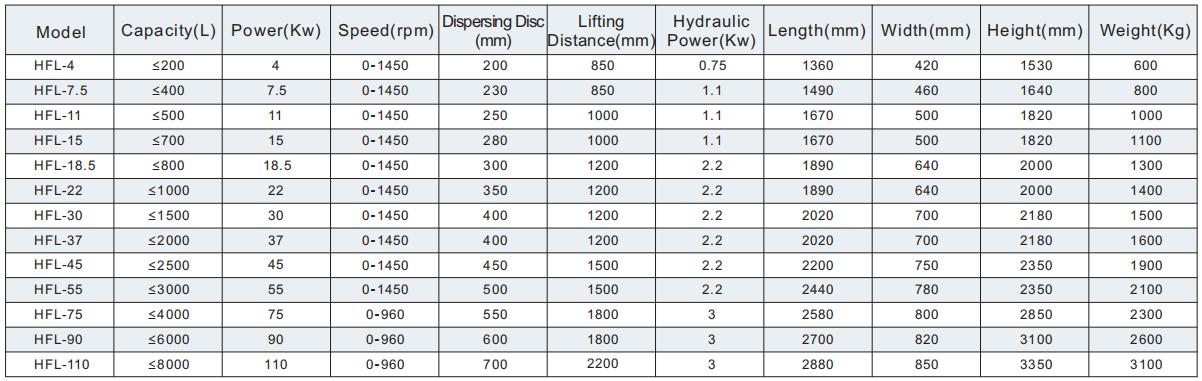

Specification Table

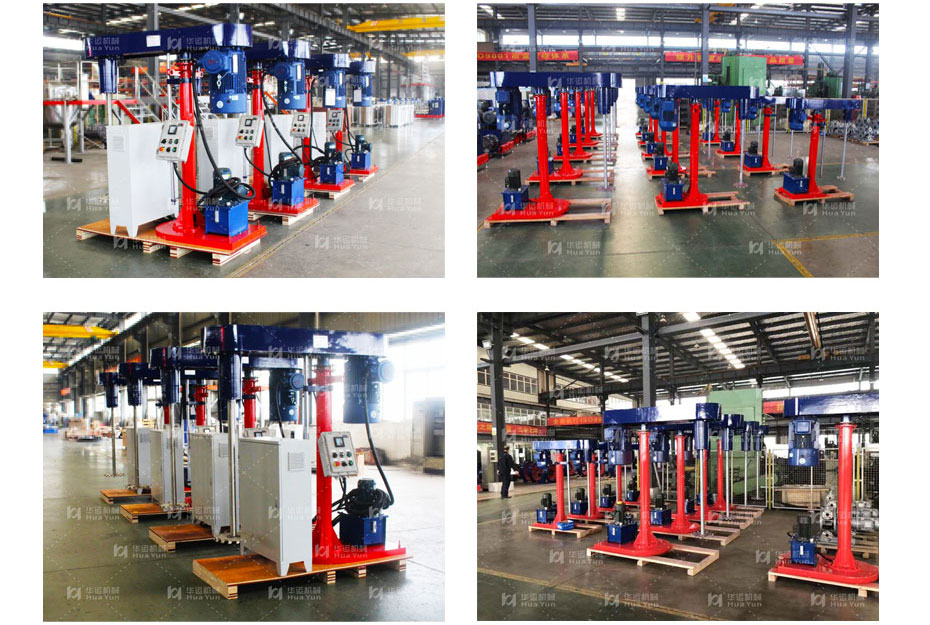

Pictures
