HYWL-Bead Mill

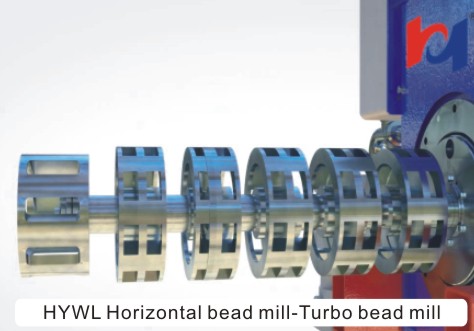

The dispersing device of the HYWL turbine bead mill is composed of a main shaft, a turbine, a reflecting cage and a bushing. The main shaft drives the dispersing turbine to rotate at a high speed, and agitates the grinding medium in the cylinder to generate a swirling flow and a radial movement, thereby the product can achieve the specified fineness and color saturation after forced grinding and dispersion.In the meantime, the product and the grinding media are separated by the dynamic discharge gap. Huayun turbine bead mill is suitable for grinding and dispersing ultra-fine material with medium and low viscosity,the grinding fineness can reach below 2 microns.

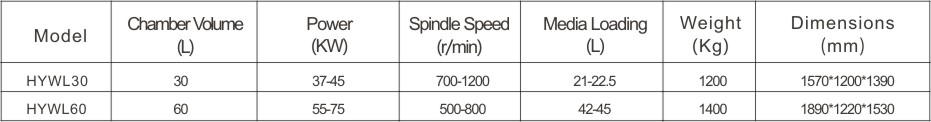

Technical Parameters
(Note: Inverter with control cabinet suggested , if motor power is 30kw and above.Frequency conversion starts makes currency more stable,and machine will work in the most reasonable condition .)
Characteristics
1. Compact structure, easy to operate;
2. More advanced screen ensures high efficiency without blocking.
3. Wear-resistance milling tank, and different type for option.
4. Jacket type milling tank and double cooling system, ensure whole process under same temperature range.
5. Anti-explosion and PLC are optional.
6. Pressure and temperature are under control.

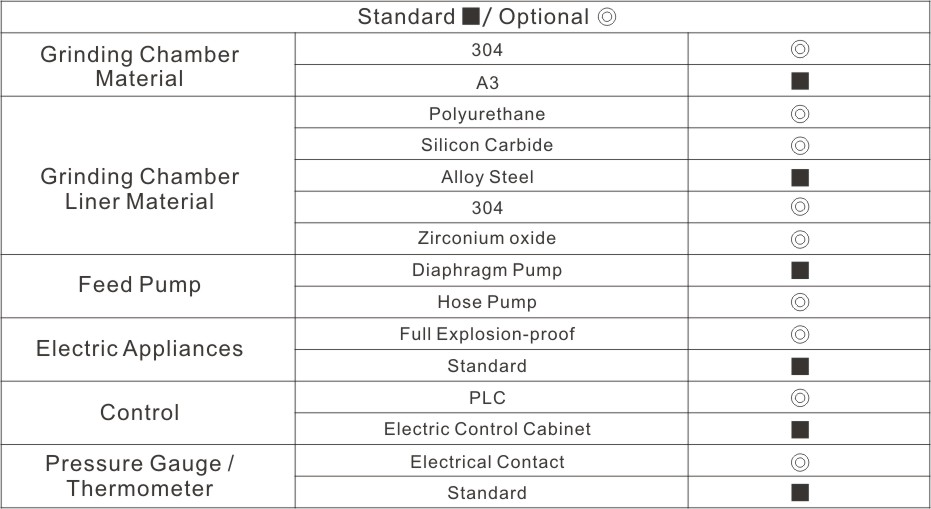

Specification Sheet
